Ocular IOCAP06C-22 32Amp Grey 4G Tower Dual Three Phase Universal

$8,360.00

best price guarantee

+ delivery and installation charges (Read More about delivery)

See delivery options for your region.

Please select postcode first
Price Match Guarantee
Check Stock Levels

  • specifications

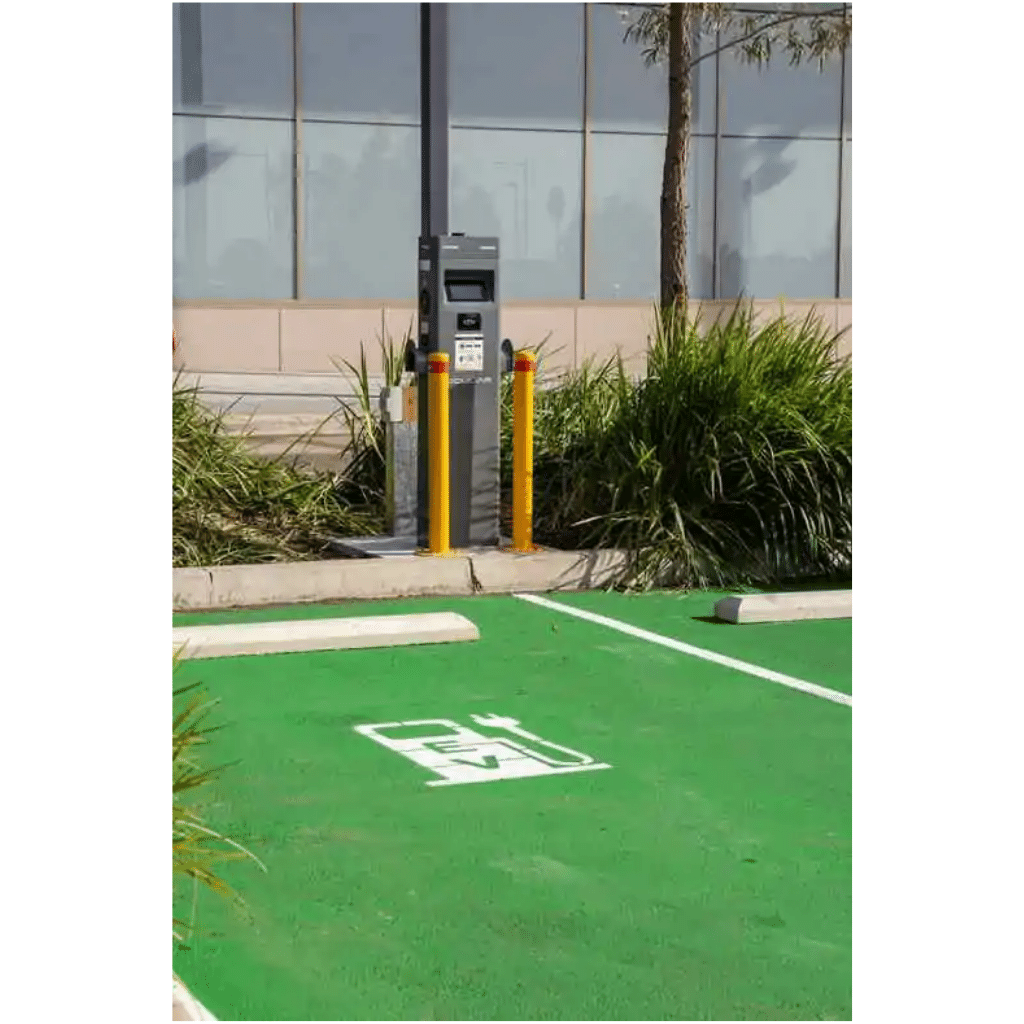

    Ocular IQ Tower provides the pinnacle in Dual Outdoor charging. The IQ Tower is encased in a robust metallic frame with a high quality and cost-effective EV charging point designed to offer full Mode 3 fast charging to any EV in Australia. This Dual unit provides the charging ability of 2x 22kW charging stations. With OCPP 1.6J integration, the charger can be connected to any charging management system for easy operation, monitoring and billing. The 7inch Screen provides Interactive EV Charging for all EVs in Australia.

  • delivery & installations - important read

    You deserve a hassle-free delivery and installation experience when you buy your next appliance. Whether replacing an old appliance or performing a kitchen remodel, all appliances in Australian kitchens must be fitted in accordance with different regulatory regulations such as the Building Code of Australia, AS/NZS 3000 Wiring Rules, AS 5601, and AG 601.

    Get in touch with The Appliance Guys. Call us on 1300 567 637 to discuss your new appliance purchase or delivery and installation.

    Read more:

    Appliance Installation

    Please note you are purchasing a like-for-like appliance installation package where the appliance being replaced and the new appliance being installed are of the same type, with no change to the location, size, or increase in the energy supply to the unit.

    As part of the Standard Installation Scope of Works, the following items will be included in this installation:

    • Deliver the new appliance.

    • Check the area for existing damage.

    • Ensure the new appliance will fit correctly into the existing space.

    • Isolate electricity or gas supply to existing the appliance.

    • Test to ensure it is off.

    • Remove and disconnect the old appliance

    • Install and connect the new appliance.

    • Secure new appliance in place as per manufacturer specifications.

    • Restore electricity or gas supply to appliance.

    • Test all functions are working on the new appliance.

    • Install oven racking and grill racking.

    • Basic demo on how to use the appliance.

    • Remove all rubbish and clean work area

    Appliance Installation Exclusions

    Please note that NO provisions have been made for unexpected joinery and benchtop adjustments or the supply of valves, gas hoses, circuit breakers, circuits, fuses, power points, ventilation holes, or trims/filler panels. Our installer will offer you a quote which must be approved before planning and performing any Additional Services.

    • Installing new powerpoints - Starts at $60.00

    • Installing complete new appliance circuits - Starts at $450.00

    • Installing shelves for ovens - Starts at $90.00

    • Installing stainless steel surround trims - Starts at $380.00

    • Installing stainless steel infill panels - Starts at $99.00

    • Cutting oven ventilation base - Starts at $49.00

    • Additional wiring, glands, junction boxes etc - Starts at $29.95

    • Installaing new flexingle gas hose - $49.95

    • Installing new gas ball valve - $60.00

    • Relocating gas supply to suitable location - Starts at $199.00

    • De-commission gas oven & cap off existing gas supply - $60.00

    Old Appliance Removal

    Recycling your appliance is an easy way to protect our environment and ensure the well-being of our community for generations to come, which is why The Appliance Guys will remove your old appliance for FREE of charge and ensure it is recycled.

    Delivery

    Recycling your appliance is an easy way to protect our environment and ensure the well-being of our community for generations to come, which is why The Appliance Guys will remove your old appliance for FREE of charge and ensure it is recycled.

Specifications

Product description

Ocular IQ Tower provides the pinnacle in Dual Outdoor charging. The IQ Tower is encased in a robust metallic frame with a high quality and cost-effective EV charging point designed to offer full Mode 3 fast charging to any EV in Australia. This Dual unit provides the charging ability of 2x 22kW charging stations. With OCPP 1.6J integration, the charger can be connected to any charging management system for easy operation, monitoring and billing. The 7inch Screen provides Interactive EV Charging for all EVs in Australia.

Specifications

Key specifications

Brand Ocular
Model Number IOCAP06C-22 4G
Finish Colour Grey
Height (mm) 1420 mm
Width (mm) 340 mm
Depth (mm) 195 mm
Charging Connector Type-2 socket/ Tethered cable
Power Output 22kW (3-Phase)
Output Voltage 400V ± 20% / phase
Output Current 32A MAX per phase
IP Performance IP55
Charging Cable Length Tethered model only - 4.5 m
Weight (kg) 55 Kg

Other features

7’ LCD Display
✔
230 Volts Dual Single Phase with configurable output (10A-32A)
✔
Charging speeds – 2x 22kW (32A)
✔
Robust commercial-grade metallic housing
✔
Full OCPP 1.6J including smart profiles
✔
IEC 62196 dual Type-2 sockets
✔
IEC 61851-1 Mode 3 fast charging
✔
Built-in overload and fault current protection
✔
Built-in LED charging status indicator
✔
MID certified energy meter with NMI option
✔
Built-in Dual RCCB Type-B IEC certified and compliant with EV standards
✔
IP grade 54 IEC 60529
✔
CE Compliant
✔
RFID card reader. ISO/IEC 156963 and 14443
✔
IK10 charging station conforming to IEC 61851-22- 38 kg
✔
5G Wi-Fi
✔
4G inbuilt modem
✔
Full OCPP 1.6J commands support
✔
RFID Access or smart phone via OCPP
✔
Outdoor rated
✔

Warranty

2 Years

Manuals

Download Specification Sheet
