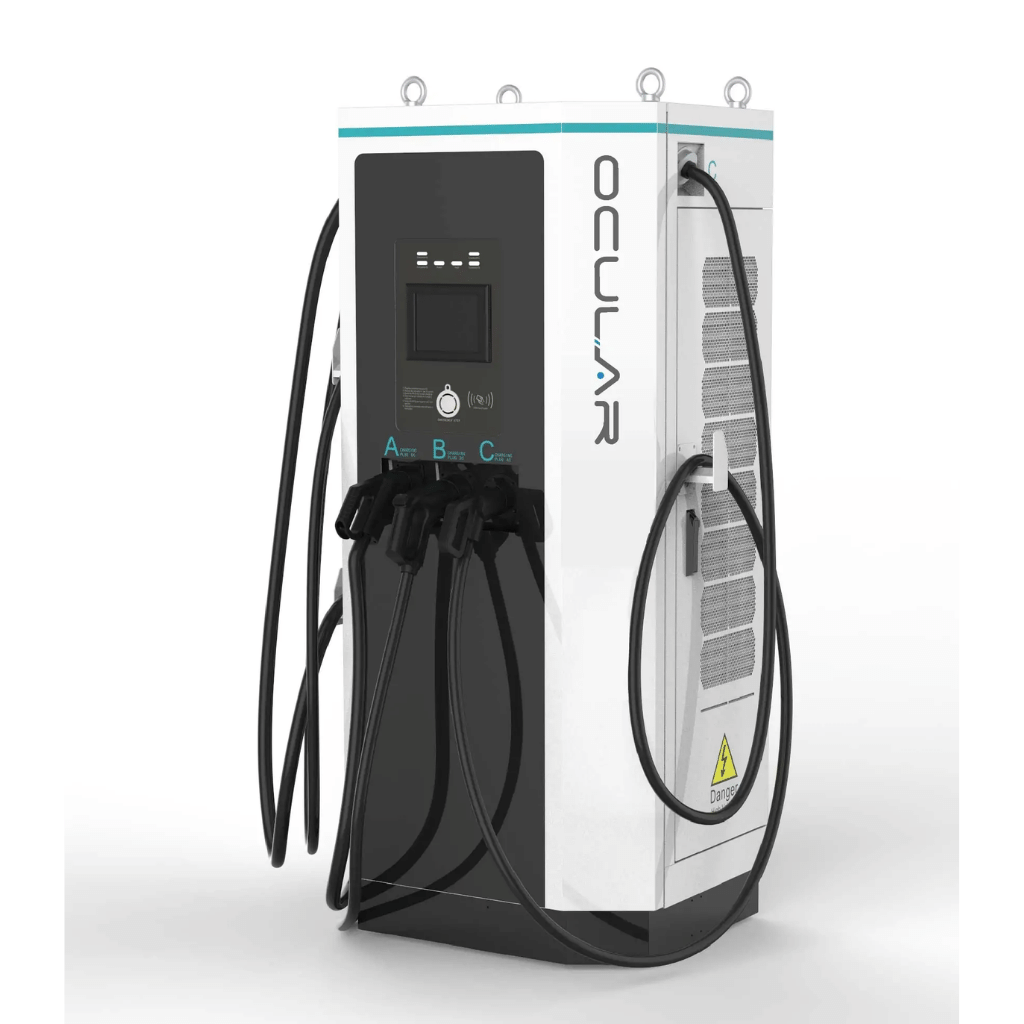

Ocular Titan OC-90HY3 90kW Combi DC Charger CCS2 + AC

The Ocular Combi DC Charger 90kW can fast charge 3 EVs at once.  The unit comes standard with 2x CCS2 Cables + 22kW AC charger to allow... Learn more

Regular price $64,350.00
Regular price Sale price $64,350.00
Sale Sold out
SKU:OC-90HY3

Collect from a warehouse in Sydney, Melbourne or Brisbane or upgrade your order with:

Ocular Titan OC-90HY3 90kW Combi DC Charger CCS2 + AC

Free HOME DELIVERY

Only for Sydney, Melbourne or Brisbane

Learn More
Ocular Titan OC-90HY3 90kW Combi DC Charger CCS2 + AC

DELIVERY & INSTALLATION - $.00

Only for Sydney, Melbourne or Brisbane

Learn More
Phone Sales: 1300 567 637
  • specifications

    The Ocular Combi DC Charger 90kW can fast charge 3 EVs at once.  The unit comes standard with 2x CCS2 Cables + 22kW AC charger to allow you to service 3 electric vehicles at once.

      SPECIFICATIONS:

      Key Specifications
      Brand Ocular
      Model Number OC-90HY3
      Finish Colour White
      Height (mm)
      1850 mm
      Width (mm) 750 mm
      Depth (mm) 640 mm
      Connection - DC plug type: Dual CCS Type 2 as standard – CHAdeMO to order
      - AC Plug Type: Type 2 22kW
      Output power 90kW
      Other Features
      Input Voltage
      400V AC 3-Phase
      Output Voltage Range
      150~1000V DC
      IP Performance
      IP54
      Cable Length 5 m
      Weight (kg) 380 Kg
      Features

      - 8-inch touchscreen display
      - RFID card, Mobile APP via OCPP
      - OCPP 1.6 & 2.0 Compatible
      - Efficiency: ≥94%
      - Cable Length: 5m
      - Over voltage protection
      - Under voltage protection
      - Over load protection
      - Leakage current protection
      - Overtemperature protection
      - Short circuit protection
      - Lightning protection
      - Emergency stop: Yes
      - Payment support: Yes vis OCPP
      - OCPP 1.6 & 2.0
      - RFID/QR Code
      - Ethernet/4G inbuilt
      - Working Environment
      - Standby power consumption:<25W

      Warranty
      Manufacturer Warranty 2 Year Warranty
      Warranty Note Domestic Warranty on Parts & Labour.
      Use Commercial, fleet, and large residential uses
      Manuals
      png-img.png User Manual Not Available
      png-img.png Specification Sheet Download Specification Sheet
